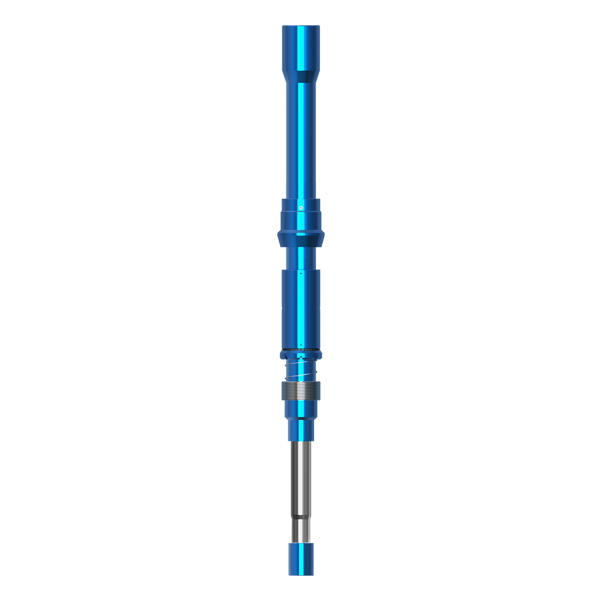

Model ST-A Liner Hanger Setting Tool
Model ST-A Liner Hanger Setting Tool
Features /
1.Used with Model XGJ, DYX, NDYX, SSX, and NSSX liner hangers.
2.Mechanical release.
3.Plate-style load applying mechanism allows higher slack-off weight.
4.No need to find the neutral point while releasing the setting tool.
5.The setting tool can be easily released by slacking off certain weight and using right hand rotation.
6.Retrievable Pack-off Bushing can be retrieved with setting tool, eliminating drill-out.
Technical Parameters /

Liner size

Connection

Rated tensile load

Sealing capacity of RPOB

In.

KN(Klb)
MPa

4

210(2-7/8 IF)

600(135)

35

5

310(3-1/2 IF)

800(180)

7

410(4-1/2 IF)

2000(450)

7-5/8

9-5/8

10-3/4

520(5-1/2 FH)

2400(540)
